HIGH PRESSURE PLUNGER PUMP
Every design detail of CAT PUMPS is optimized for long product life and reliable performance.
OIL & GAS
MANUFACTURE
FOOD & BEVERAGE
VEHICLE CLEANING
DISTRIBUTORS
PPSC are the one and only leading distributor of CAT PUMPS at Vietnam and SEA region
Along our experience working history, PPSC create a trustworthy name in delivering high-pressure electric pump solution with CAT PUMPS
PRODUCTS RANGE
PUMPS
Secondary Pressure Control
HOW CAT PUMP WORK
PLUNGER PUMP
Max Working Pressure
10,000 PSI
Manifold
Max Flow Rate
908 LPM
WORKING FEATURE
1. Plunger pumps use spring-loaded closed and hydraulically opened valves.
2. The plunger opens the discharge valve at the stroke’s start.
3. The discharge valve closes at the end of the stroke.
4. On the backward stroke, the inlet valve opens.
5. This ensures a continuous forward flow of liquid.
PISTON PUMP
Max Working Pressure
1,500 PSI
Manifold
Max Flow Rate
227 LPM
WORKING FEATURE
1. The piston pump maintains smooth forward fluid movement, minimizing cavitation risks when primed.
2. In the forward stroke, the inlet valve closes, pushing liquid out through discharge valves.
3. Fresh liquid enters simultaneously behind the inlet valves.
4. On the backward stroke, the inlet valve opens, allowing forward flow until the stroke ends.
SF (SUPER FLOW) PUMP
Max Working Pressure
2,500 PSI
Manifold
Max Flow Rate
15.9 LPM
WORKING FEATURE
1. SF Plunger Pumps use “Superflow” design with spring-loaded valves for continuous flow.
2. Flow-through ceramic plungers combine piston and plunger pump features for suction and pressure.
3. Closed inlet valve directs flow at the stroke’s start.
4. On the backward stroke, the inlet valve opens for flow through the ceramic plunger.
ACCESSORIES

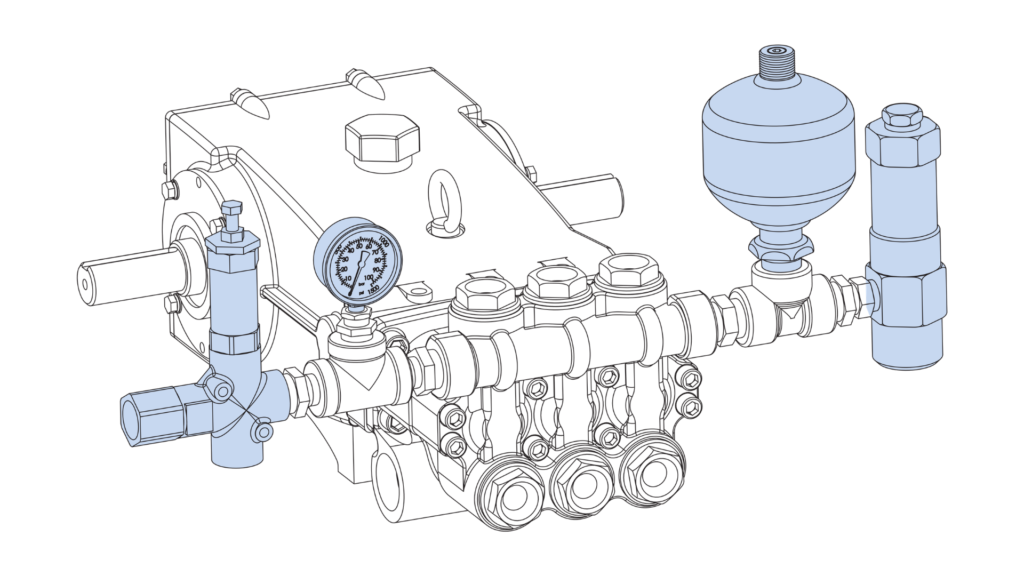

For maximum system protection, Cat Pumps recommends the use of a primary regulating device, secondary pressure relief device, and discharge pressure gauge.
PRIMARY PRESSURE CONTROL
INSTALLATION POSITION
REGULATOR
Used when consistent pressure accuracy is required.

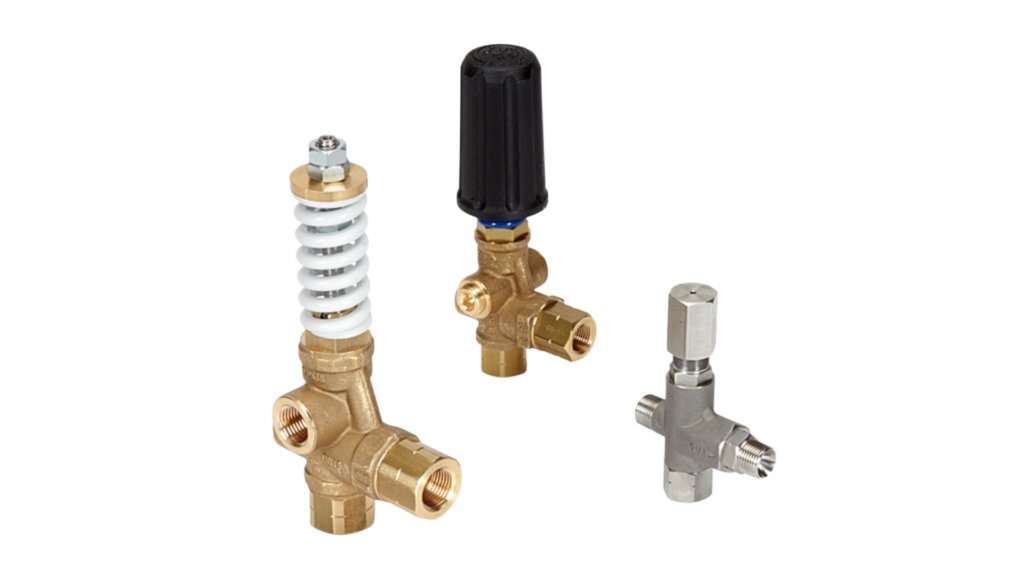

UNLOADER VALVE
Typically, used with trigger gun applications.
WORKING FEATURE
Regulator is used for multiple pump, nozzle and gun applications. Conical design lowers minimum required by-pass flow and eliminates cavitation effects extending performance life.
Unloader valve help to reduce load on pump and motor when in by-pass with wide pressure and flow range models available
SECONDARY PRESSURE CONTROL

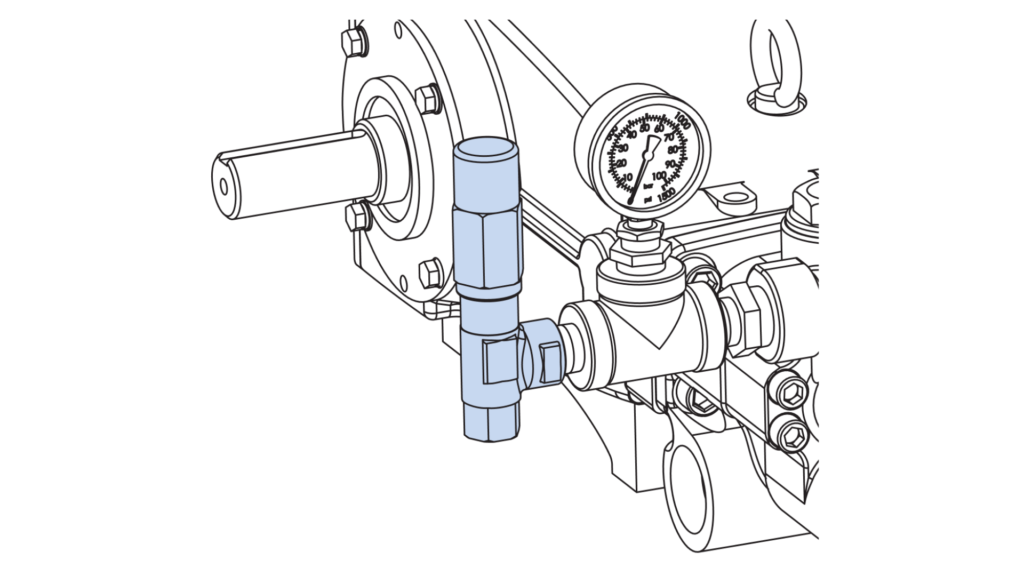

INSTALLATION POSITION

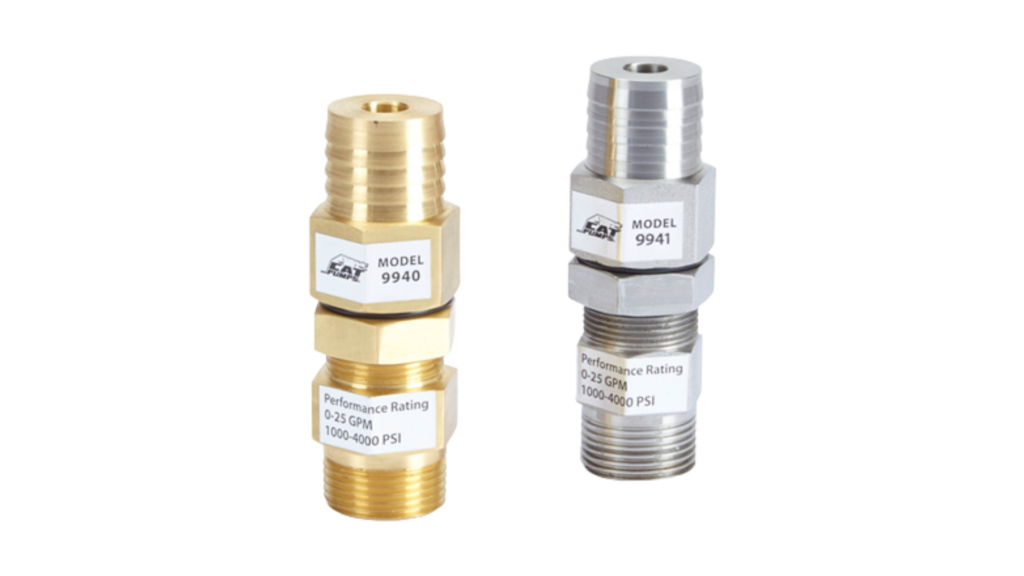

POP-OFF VALVE
Economical, secondary relief protection.
RELIEF VALVE
Reliable and accurate secondary backup pressure relief.
WORKING FEATURE
Lightweight, compact design quickly and conveniently mounts directly into discharge line.
Competitive ultra compact models for portable systems.
Heavy duty conveniently mounts directly into discharge line.
Wide pressure and flow range models available.
OUTLET ACCESSORIES

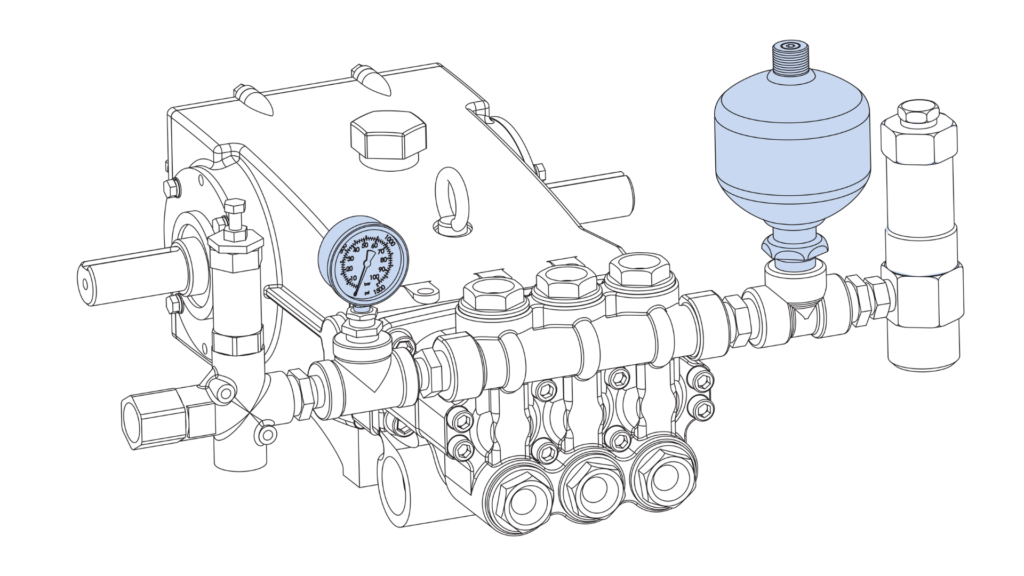

INSTALLATION POSITION
PULSATION DAMPENER
Used when a smooth output flow and pressure is required.
PRESSURE GAUGE
Accurately monitors pump outlet pressure.
WORKING FEATURE
Diaphragm materials match chemical compatibility requirements
Most models are field repairable and rechargable.
Glycerine filled for consistent and accurate pressure readings.
Sealed stainless steel case eliminates corrosion risk.
SYSTEMS
Custom Pumping Systems are referred to by many names. They can be referred to as skid-mounted units, power units, pumping systems, base units, stacked units, pre-packaged systems, aggregates, horizontal pump unit, manufactured system, modular units, pre-assembled pump systems, fabricated systems or multiple pump systems.
Cat Pumps can custom engineer your industrial pumping system to meet your specific application and installation requirements. With experience in hundreds of different applications, our Custom Systems can be configured to meet any application demands.
POWER SOURCES
MOTOR
ENGINE
BASE CONFIGURATION
STANDARD HORIZONTAL
PORTABLE
DRIVE OPTION
BELT
COUPLING
GEARBOX
DIRECT
